详细描述

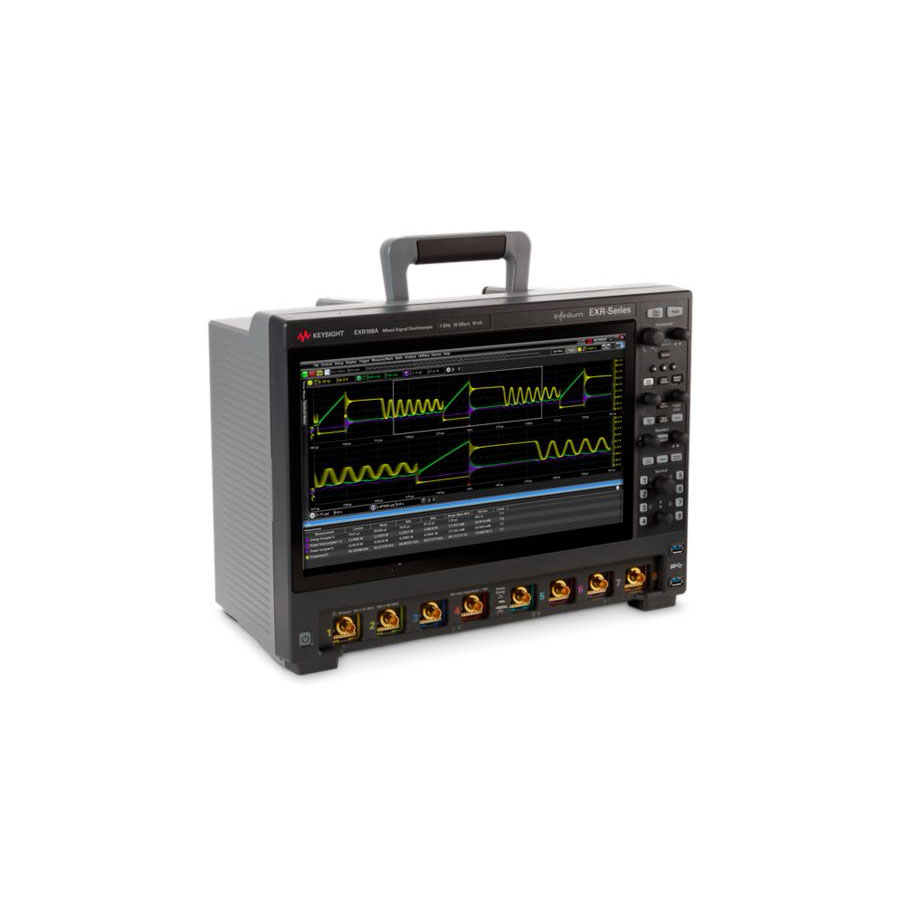

型号：EXR108A 品牌：keysight
1 GHz on all 8 analog channels Faster test speeds than ever before with ASIC technology Accurate measurements with ENOB up to 9.0, noise as low as 43 μV Capabilities are extended with 7-in-1 instrument integration Upgradeable in every possible way – including bandwidth and channel upgrades
带宽 500 MHz
带宽升级 Available
最大存储器深度 400 Mpts/ch
最大采样率 16 GSa/s
显示屏尺寸 15.6” Full HD
波形更新速率 >200,000 wfm/s
ADC 位数 10, up to 16 with high-res
本底噪声 As low as 43 μV
有效位数（ENOB） As high as 9.0
最短上升/下降时间 860 ps (10-90), 620 ps (20-80)
内置仪器（可选）
Logic Analyzer
Protocol Analyzer
DVM
Counter
Bode Plotter
Waveform Generator
操作系统 Windows 10
数字通道 16, dedicated input
模拟通道 4
Channel Upgrades 是
